- GIGABYTE
Цена
€151 28 / 295 88 лв
с ДДС
* ВЪНШЕН ДОСТАВЧИК - (1 до 3 дни)
* - Стоката е в склад на официалния вносител на марката за България. Времето за доставка е обикновено от 1 до 3 работни дни. Възможно е към момента на завършване на поръчката, продукта да е вече изчерпан. В случай на изчерпана наличност ще се свържем с Вас
Информираме Ви, че въпреки нашите усилия не можем да гарантираме, че публикуваната информация и снимки не съдържат неточности или грешки, които не могат да бъдат правно основание за претенции.
Vendor_url
https://www.gigabyte.com/Motherboard/B650-GAMING-X-AX-V2-rev-1x#kf
Graphics
Integrated Graphics Processor with AMD Radeon™ Graphics support
-1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version and HDR.
-1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
(Graphics specifications may vary depending on CPU support.)
CPU's supported
AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
Chipset
AMD B650
Expansion slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU
-AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode
-AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
-AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot
Chipset
-2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)
Storage
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs
-AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs
-AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs
-AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
-AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
-AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs
-4 x SATA 6Gb/s connectors
-RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
-RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Memory type
Support for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200/ 4800/ 4400 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Rear panel I/O
CPU
-1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
-1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
-1 x USB 3.2 Gen 1 port on the back panel
CPU + USB 2.0 Hub
-3 x USB 2.0/1.1 ports on the back panel
Chipset
-1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
-4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
-4 x USB 2.0/1.1 ports available through the internal USB headers
Connectors
iTE® I/O Controller Chip
1x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
2 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
Back Panel Connectors:
2 x SMA antenna connectors (2T2R)
1 x Q-Flash Plus button
1 x DisplayPort
1 x HDMI port
1 x USB Type-C® port, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 2 Type-A port (red)
3 x USB 3.2 Gen 1 ports
3 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Lan
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless
Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.0)
-WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
-BLUETOOTH 5.3
-Support for 11ax 160MHz wireless standard
AMD Wi-Fi 6E RZ616 (MT7922A22M) (PCB rev. 1.1)
-WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
-BLUETOOTH 5.2
-Support for 11ax 160MHz wireless standard
Intel® Wi-Fi 6E AX210 (PCB rev. 1.2)
-WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
-BLUETOOTH 5.3
-Support for 11ax 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
ATX Form Factor
30.5cm x 24.4cm
OS
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Warranty
36 Months
| Атрибут | Стойност |
|---|---|
| Vendor_url | https://www.gigabyte.com/Motherboard/B650-GAMING-X-AX-V2-rev-1x#kf |
| Chipset | AMD B650 |
| OS | Support for Windows 10 64-bit |
| OS | Support for Windows 11 64-bit |
| Warranty | 36 Months |
| CPU's supported | AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors |
| Memory type | Dual channel memory architecture |
| Memory type | Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
| Memory type | Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
| Memory type | 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory |
| Memory type | Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules |
| Form Factor | 30.5cm x 24.4cm |
| Form Factor | ATX Form Factor |
| Audio | Realtek® Audio CODEC |
| Audio | High Definition Audio |
| Audio | 2/4/5.1/7.1-channel |
| Audio | * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| Rear panel I/O | CPU |
| Rear panel I/O | Chipset |
| Rear panel I/O | -1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support |
| Rear panel I/O | -1 x USB 3.2 Gen 2 Type-A port (red) on the back panel |
| Rear panel I/O | -1 x USB 3.2 Gen 1 port on the back panel |
| Rear panel I/O | CPU + USB 2.0 Hub |
| Rear panel I/O | -3 x USB 2.0/1.1 ports on the back panel |
| Rear panel I/O | -1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header |
| Rear panel I/O | -4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
| Rear panel I/O | -4 x USB 2.0/1.1 ports available through the internal USB headers |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Expansion Slots | Chipset |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU |
| Expansion Slots | * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot |
| Expansion Slots | -AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode |
| Expansion Slots | -AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode |
| Expansion Slots | -AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode |
| Expansion Slots | -2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2) |
| Wireless | Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.0) |
| Wireless | -WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands |
| Wireless | -BLUETOOTH 5.3 |
| Wireless | -Support for 11ax 160MHz wireless standard |
| Wireless | AMD Wi-Fi 6E RZ616 (MT7922A22M) (PCB rev. 1.1) |
| Wireless | -BLUETOOTH 5.2 |
| Wireless | Intel® Wi-Fi 6E AX210 (PCB rev. 1.2) |
| Wireless | (Actual data rate may vary depending on environment and equipment.) |
| Graphics | (Graphics specifications may vary depending on CPU support.) |
| Graphics | * Support for HDMI 2.1 version and HDCP 2.3. |
| Graphics | * Support for DisplayPort 1.4 version and HDR. |
| Graphics | ** Support native HDMI 2.1 TMDS compatible ports. |
| Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support |
| Graphics | -1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz |
| Graphics | -1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| Features | Support for Q-Flash Plus |
| Features | Support for Q-Flash |
| Features | Support for GIGABYTE Control Center (GCC) |
| Features | * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. |
| BIOS | 1 x 256 Mbit flash |
| BIOS | Use of licensed AMI UEFI BIOS |
| BIOS | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| I/O | CPU |
| I/O | Chipset |
| I/O | -1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support |
| I/O | -1 x USB 3.2 Gen 2 Type-A port (red) on the back panel |
| I/O | -1 x USB 3.2 Gen 1 port on the back panel |
| I/O | CPU + USB 2.0 Hub |
| I/O | -3 x USB 2.0/1.1 ports on the back panel |
| I/O | -1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header |
| I/O | -4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
| I/O | -4 x USB 2.0/1.1 ports available through the internal USB headers |
| Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs |
| Storage | 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs |
| Storage | -AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs |
| Storage | -AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs |
| Storage | 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs |
| Storage | -AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs |
| Storage | -AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs |
| Storage | -AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs |
| Storage | -4 x SATA 6Gb/s connectors |
| Storage | -RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices |
| Storage | -RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Connectors | 1 x CPU fan header |
| Connectors | 1 x system fan/water cooling pump header |
| Connectors | 2 x addressable LED strip headers |
| Connectors | 2 x RGB LED strip headers |
| Connectors | 3 x M.2 Socket 3 connectors |
| Connectors | 1 x front panel header |
| Connectors | 1 x front panel audio header |
| Connectors | 1 x USB 3.2 Gen 1 header |
| Connectors | 2 x USB 2.0/1.1 headers |
| Connectors | 1 x serial port header |
| Connectors | 1 x reset button |
| Connectors | 1 x Q-Flash Plus button |
| Connectors | 1 x reset jumper |
| Connectors | 1 x Clear CMOS jumper |
| Connectors | 1 x 8-pin ATX 12V power connector |
| Connectors | 4 x SATA 6Gb/s connectors |
| Connectors | 2 x system fan headers |
| Connectors | 1 x CPU cooler LED strip/RGB LED strip header |
| Connectors | 1 x RJ-45 port |
| Connectors | 3 x audio jacks |
| Connectors | 1 x CPU fan/water cooling pump header |
| Connectors | 1x 24-pin ATX main power connector |
| Connectors | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
| Connectors | 1 x DisplayPort |
| Connectors | 1 x HDMI port |
| Connectors | 2 x SMA antenna connectors (2T2R) |
| Connectors | 1 x 4-pin ATX 12V power connector |
| Connectors | 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support |
| Connectors | 1 x USB Type-C® port, with USB 3.2 Gen 2 support |
| Connectors | iTE® I/O Controller Chip |
| Connectors | Back Panel Connectors: |
| Connectors | 1 x USB 3.2 Gen 2 Type-A port (red) |
| Connectors | 3 x USB 3.2 Gen 1 ports |
| Connectors | 3 x USB 2.0/1.1 ports |
| Тегло | 0.00кг |

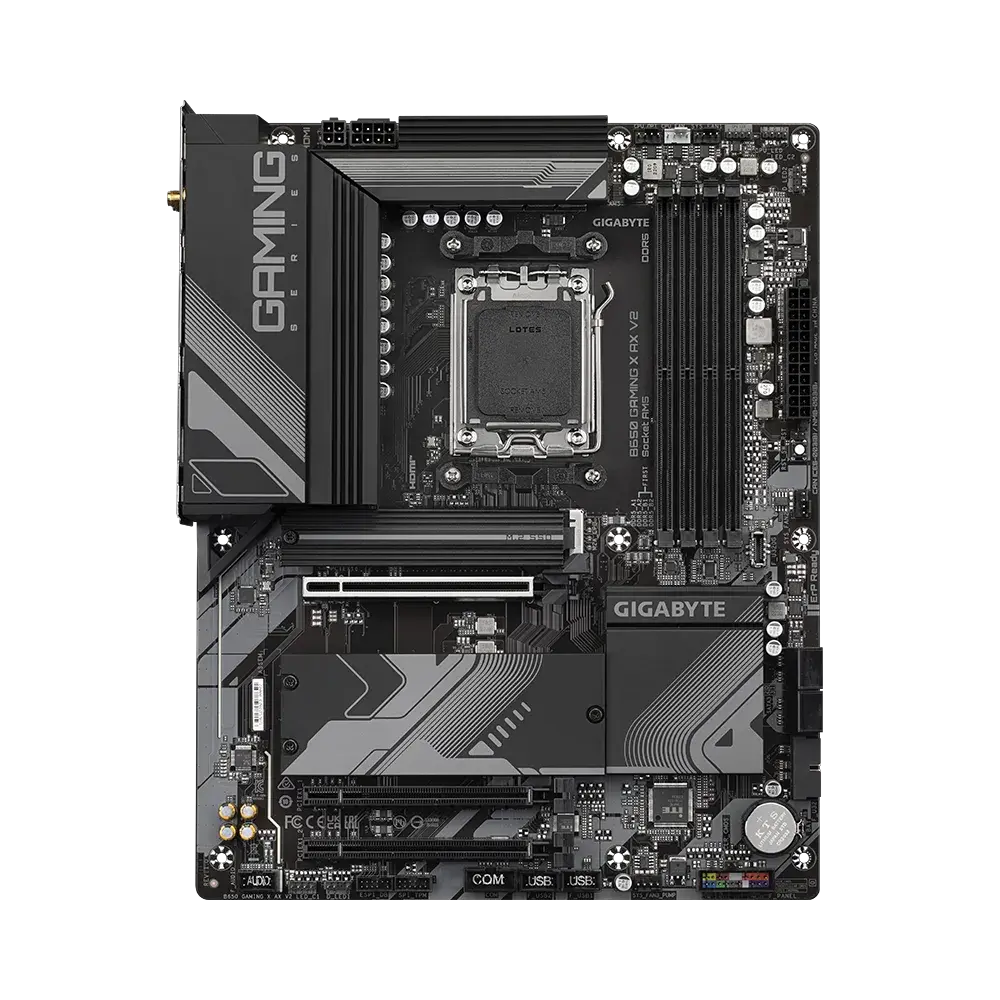

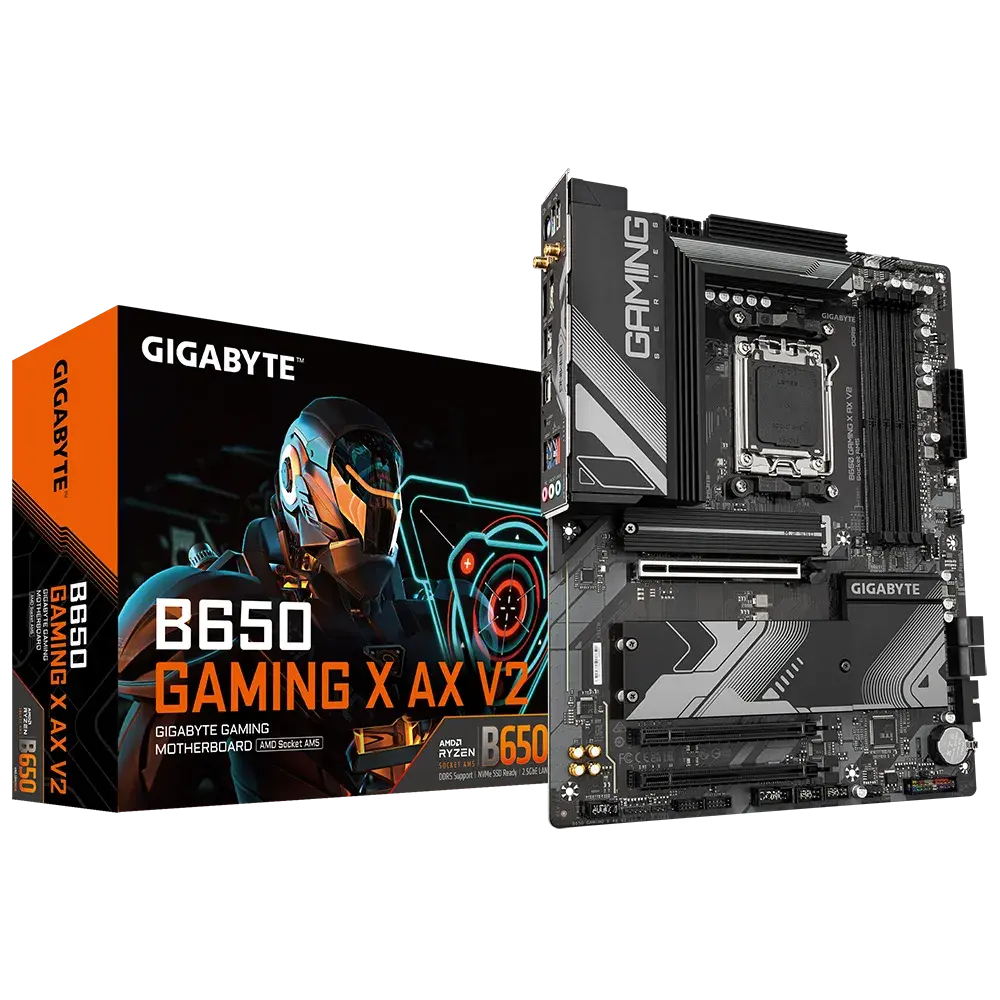

Дънна платка GIGABYTE B650 GAMING X AX V2
Освободете пълния потенциал на вашия AMD Ryzen 7000-серия процесор с дънната платка GIGABYTE B650 GAMING X AX V2. Този ATX модел предоставя производителност от ново поколение с поддръжка на PCIe 5.0, ултра-бърза DDR5 памет и вграден Wi-Fi 6E за безпроблемна свързаност.
Ключови Предимства
- AMD AM5 платформа — Поддръжка на последните процесори Ryzen 7000/8000/9000 с цокъл LGA 1718.
- Готовност за PCIe 5.0 — Един PCIe 5.0 x16 слот и един PCIe 5.0 M.2 слот за бъдещо ъпгрейдване на графиката и съхранението.
- Двоен M.2 с термични защити — Два M.2 слота (един Gen5, един Gen4) с радиатори за охлаждане на SSD дисковете.
- Бърза мрежа — 2.5GbE LAN и Wi-Fi 6E (802.11ax) с Bluetooth 5.3 за бързи и надеждни връзки.
- Подобрен звук — Realtek ALC897 кодек с висококачествени аудио кондензатори за потапящ звук.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | AM5 |
| Форм фактор | ATX |
| Чипсет | AMD B650 |
| Тип памет | DDR5 |
| Слотове за памет | 4 (Dual Channel) |
| Максимална памет | 192 GB |
| M.2 слотове | 2 |
| SATA портове | 4 |
| PCIe x16 слотове | 2 |
| Вграден Wi-Fi | Wi-Fi 6E |
| Скорост на LAN | 2.5 Gbps |
| USB-C портове (отзад) | 1 |
| RGB подсветка | Не |
Какво има в кутията
- Дънна платка GIGABYTE B650 GAMING X AX V2
- Ръководство за потребителя
- 2 x SATA кабела
- I/O щит
- Wi-Fi антена
- M.2 винтове и дистанционери
- DVD с драйвери (ако е приложимо)
Запишете се за нашият Бюлетин
Запиши се за нашия онлайн бюлетин и научи първи за промоционални и нови продукти.
Методи за Плащане
- Наложен Платеж
- Кредитна/Дебитна Карта
- Банков Превод
- На изплащане ПБ Лични Финанси
